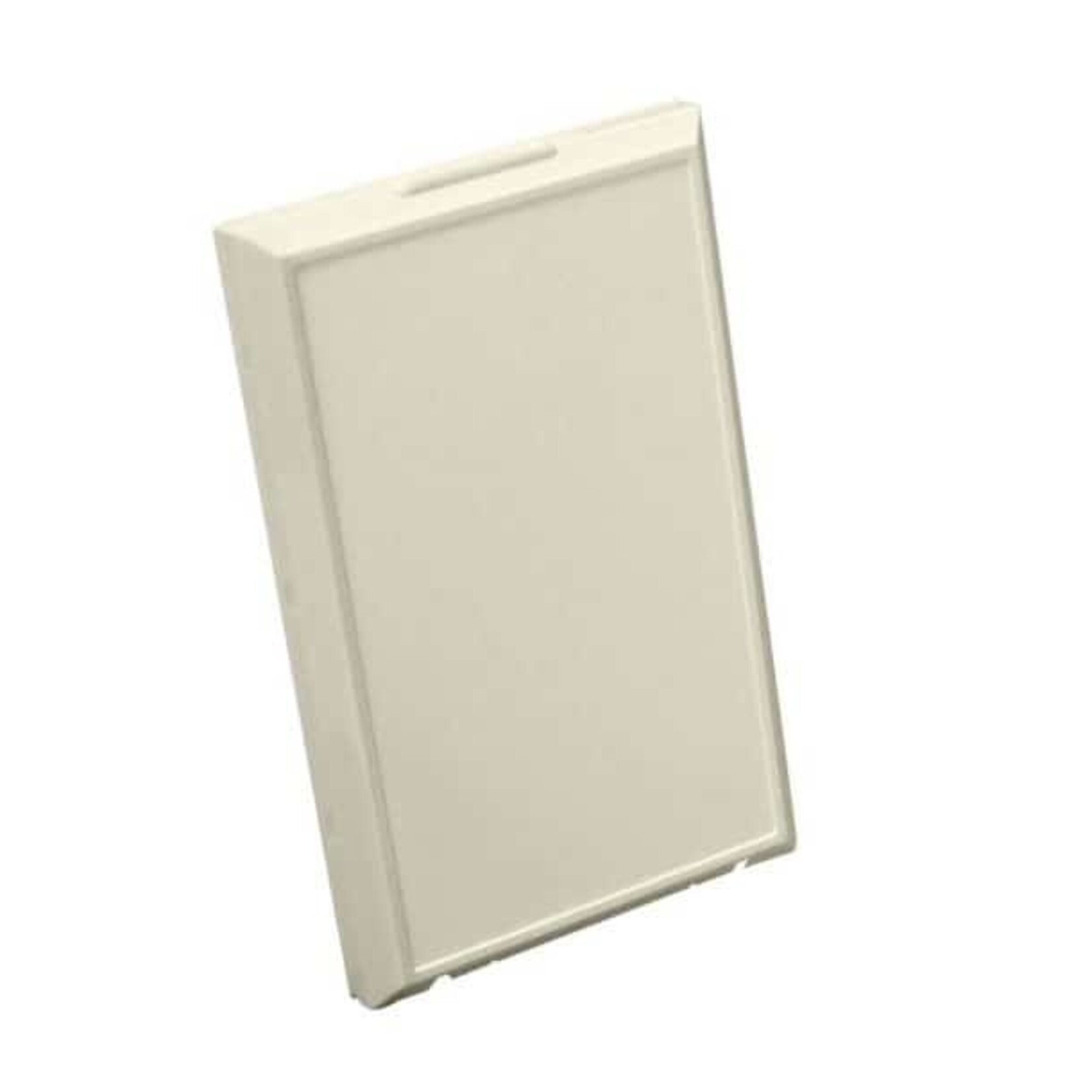

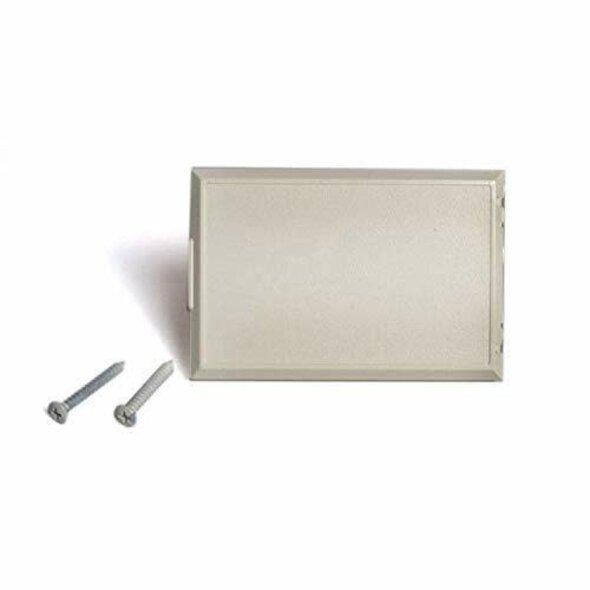

The Hayden 792000A Low Volt Full Door Inlet Valve delivers reliable 24V low-voltage operation for central vacuum systems. This almond-finished inlet directly replaces Hayden 2000 series models with identical 4-inch mounting screw centers and 1-5/8" installation hole diameter.

Installation features include two metal contact points positioned inside the hose insertion opening and dual screw terminals on the backside for secure 24V wire connections. When a standard 1.5" diameter hose is inserted, metal contacts engage to send the startup signal to your central vacuum unit. The full door design allows mounting with door opening upward or downward for optimal room layout accommodation.

This 24V-only inlet (no 115V power supply) works with all low-voltage hose systems and handle-switched models. Verified compatibility includes AirMaster, Modern Day, SilentMaster, Flo-Master, Beam, NuTone, Electrolux, Vacuflo, Kenmore, and Eureka central vacuum systems. The robust construction ensures long-term reliability in residential and light commercial applications.

Swiss Boy Vacuum Bountiful has served as Utah's authorized Hayden dealer since 1963, completing over 10,000 central vacuum installations across the Wasatch Front. Our certified technicians provide professional inlet valve installation, system troubleshooting, and comprehensive service support throughout Northern Utah.
