Electra-Valve Plug for New Style Valve - EBox

Electra-Valve Plug for 2nd Generation Valve - Ebox

Article number: B775851EBX

$19.75

Excl. tax

NuTone Central Vacuum E-Box For CI399 Electra-Valve II InletsNEW! Summer 2015. Older style no longer available.1) No more romex attached to a molded end. Now simply snap your romex into the new E-Box connector.
2) Permanent connection to inlet. The new E-

Description

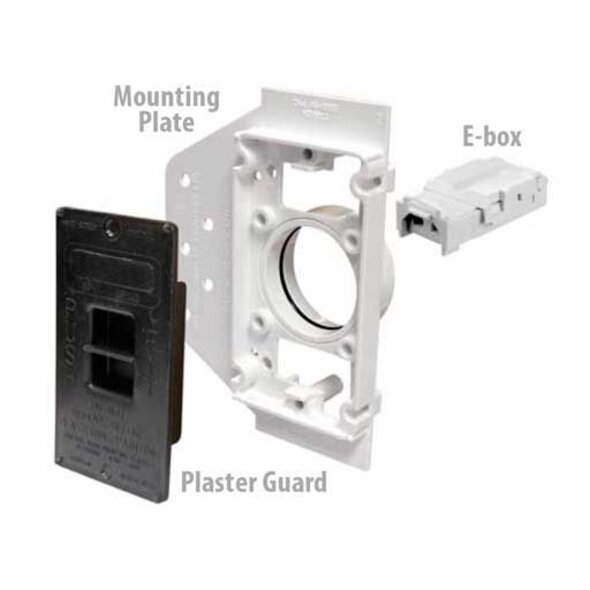

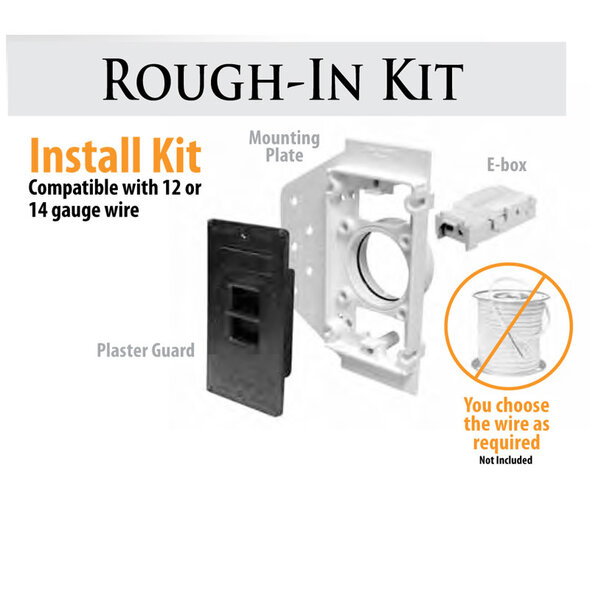

Electravalve rough-in kit. includes mounting plate plaster guard, and work box to connect electric wires.

Compatible with 12 or 14 gauge wire.
Designed to install electravalve face plates.
Use with BI-9247-0 almond face plate, or BI-9247-1 white face plate.

For applications where the installer is marrying an old style rough-in kit (CI395RK) with a new ElectraValve II wall inlet (CI399W or CI399ALM). In this situation, the old-style plug will have to be cut off at the valve and the E-box connector installed to fit with the new wall valve. Original CI390 Electra-Valve inlets are not compatible with the new Electra-Valve II Rough-In Kit (CI399RK).

PRODUCT DETAILS

NEW! Summer 2015. Older style no longer available.
The E-box ElectraValve is the new ElectraValve from Vaculine/Canplas and is not compatible with older ElectraValves which are now out of production. When replacing an older ElectraValve cover plate, you will need the new E-Box Electravalve cover plate as well as the new E-box connector. Snip off the old plug and strip back the Romex to fit into the new E-box connector.

Differences between the old ElectraValve and new E-Box ElectraValve:
1) No more Romex attached to a molded end. Now simply snap your Romex into the new E-Box connector.
2) Permanent connection to inlet. The new E-box ElectraValve cover plate allows the new E-Box connector to easily snap into place - permanently.
