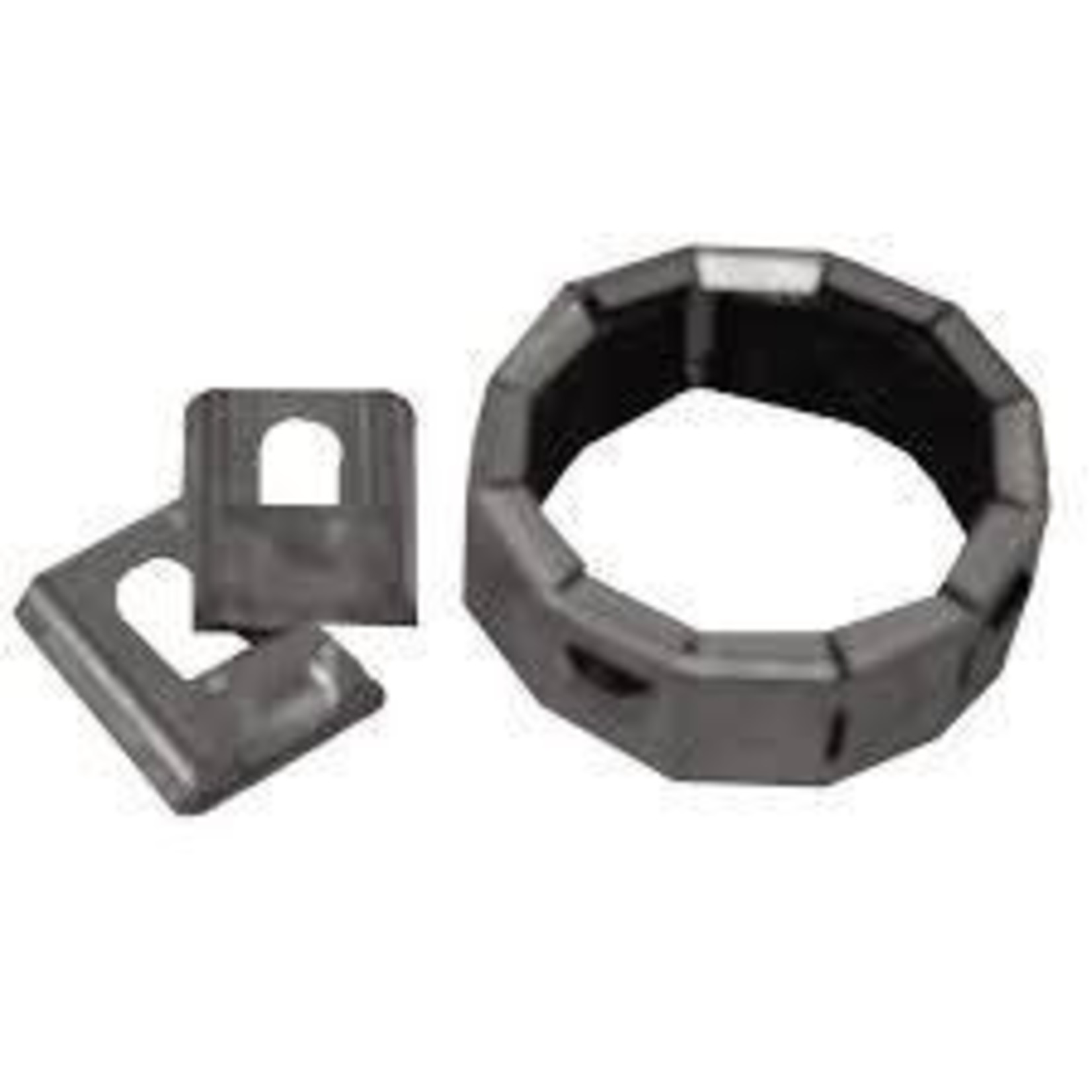

The HILTI CP 643-50/1.5"N is a ready-to-use firestop collar made of galvanized steel housing with intumescent inserts for firestopping combustible pipes. This model fits pipes from 1.4-2.0" diameter, measures 2.8" outside diameter by 0.9" height, and includes 2 hooks and fasteners. Temperature resistance spans -40°F to 140°F with intumescent activation at approximately 392°F and expansion ratio up to 1:10.

Manufactured from galvanized steel with adjustable position tabs for simple fastening and intumescent inserts. Tested in accordance with UL 1479, ASTM E 814, and ASTM G21 standards. Features include ready-to-use installation, no construction required, fast installation time, and low profile for tight installations.

Designed for fire-stopping combustible pipes in penetrations through fire walls and floors, suitable for PVC, CPVC, ABS, PVDF, PP and FR/PP pipe materials. BS and UL compliant, FM approved retrofit firestop collar creates fire and smoke barrier around pipe penetrations. Compatible with central vacuum systems requiring fire protection compliance.

Swiss Boy Vacuum has served the Wasatch Front since 1963 as Utah's largest BEAM dealer with over 10,000 central vacuum installations. Our certified technicians ensure proper fire stop collar installation for code compliance and safety.
