Product Description

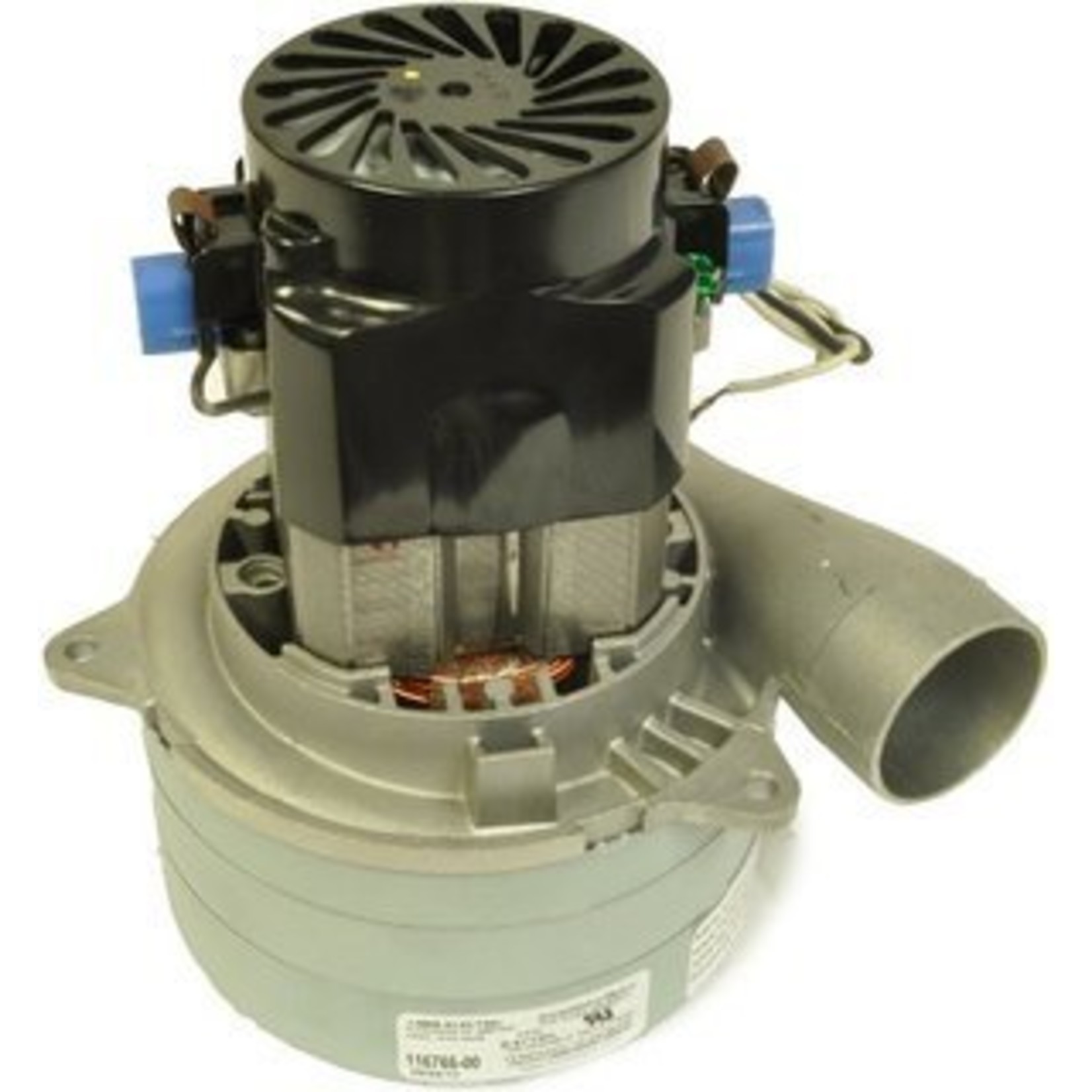

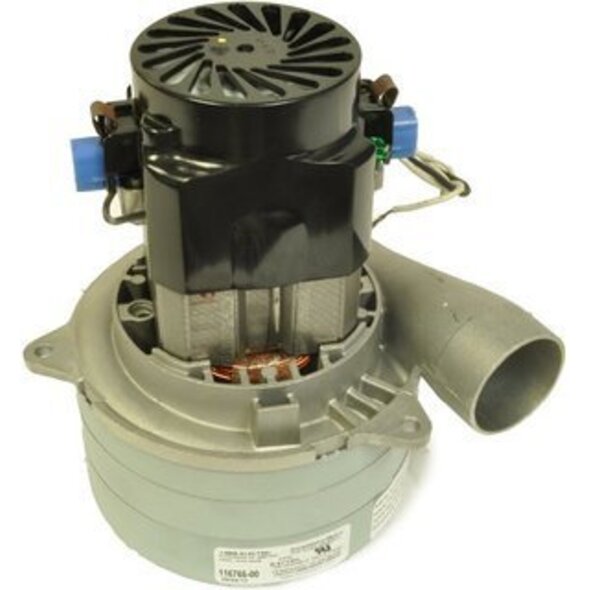

The Ametek Lamb Beam 3-Stage Central Vacuum Motor (part numbers 116765-00/140222) is a professional-grade 120V motor with 5.7" diameter design that delivers exceptional performance with 136" waterlift, 95 CFM airflow, 465 air watts, and 13.1 amp draw. This tangential discharge bypass motor operates at a maximum speed of 17,700 RPM, making it ideal for demanding central vacuum applications.

Built by Lamb Ametek, this bypass motor measures 8 inches tall by 5.7 inches in width and contains 3 stages (fans). The motor is an industry favorite with a great combination of efficiency and powerful suction. The tangential discharge system enhances performance by efficiently directing airflow out of the motor.

This 3-stage bypass motor fits seamlessly into Beam models (199, 299, 2100, 2220, 371, 491), Broan models (V28C, CV30), Canavac (399, GENX3), Easyflo (EF1409, EF2200), Eureka models (1801, BOSS, CV497, CF3231, CV137, CV199, CV299), Hayden 6000, Hoover SS5573175, and Kenmore models (34337, 34447, 34687). Also compatible with AirMaster, Modern Day, Flo-Master, Beam, Electrolux, Kenmore and Eureka systems.

Swiss Boy Vacuum has been Utah's premier central vacuum specialist since 1963, serving the Wasatch Front from our Bountiful location. As an authorized Beam dealer with over 10,000 installations, we provide expert motor replacement and service. Call 801-298-3656 for professional installation and support.

Why Choose This Product?

• 136" waterlift with 95 CFM airflow capacity
• 465 air watts at 13.1 amp draw for maximum efficiency
• 17,700 RPM maximum operating speed
• 5.7" diameter 3-stage design
• Tangential discharge bypass airflow system
• Compact 8" height x 5.7" width dimensions
• Zero maintenance operation - no grease, oil, or tightening required
• 300-500 hour brush replacement interval

Specifications

• Brand: Lamb Electric
• Part Number: 116765-00/140222
• SKU: 6052242
• Voltage: 110-120 Volt
• Stages: 3-stage
• Dimensions: 8" height x 5.7" width
• RPM: 17,700 maximum
• Waterlift: 136"
• CFM: 95
• Air Watts: 465
• Amperage: 13.1 amps
• Motor Type: 3-stage bypass tangential
• Maintenance: Replace brushes at 300-500 hours

Compatibility

• Beam Models: 199, 299, 2100, 2220, 371, 491
• Broan Models: V28C, CV30
• Canavac Models: 399, GENX3
• Easyflo Models: EF1409, EF2200
• Eureka Models: 1801, BOSS, CV497, CF3231, CV137, CV199, CV299
• Hayden Models: 6000
• Hoover Models: SS5573175
• Kenmore Models: 34337, 34447, 34687

Use Case

This motor is designed for central vacuum systems and car wash vacuum applications where efficiency and durability are essential. Replace your motor when you experience signs like mini breaker popping, electrical smell, excessive blue sparks, clicking sounds only, or motor shutdown after 900-1,200 hours of operation. The high RPM capability makes it highly suitable for demanding applications where rapid and powerful suction is required.
