The Oreck 5-Blade Plastic Replacement Fan (Part# 09-75300-01) is the primary suction impeller inside virtually every Oreck XL and XL2 upright vacuum ever manufactured. Mounted directly on the motor shaft, this fan generates the airflow that powers the vacuum's suction — pulling air and debris up through the cleaning head and into the bag. Because Oreck XL uprights use a "dirty-air" direct-suction design, the fan is in continuous contact with dirt and debris during operation, making it one of the most wear-prone components in the system. When the fan cracks, chips, or becomes unbalanced from contact with hard debris, symptoms show up fast: reduced suction, unusual vibration, increased motor noise, or overheating. Replacing this fan is typically one of the quickest and most cost-effective repairs available for these vacuums.

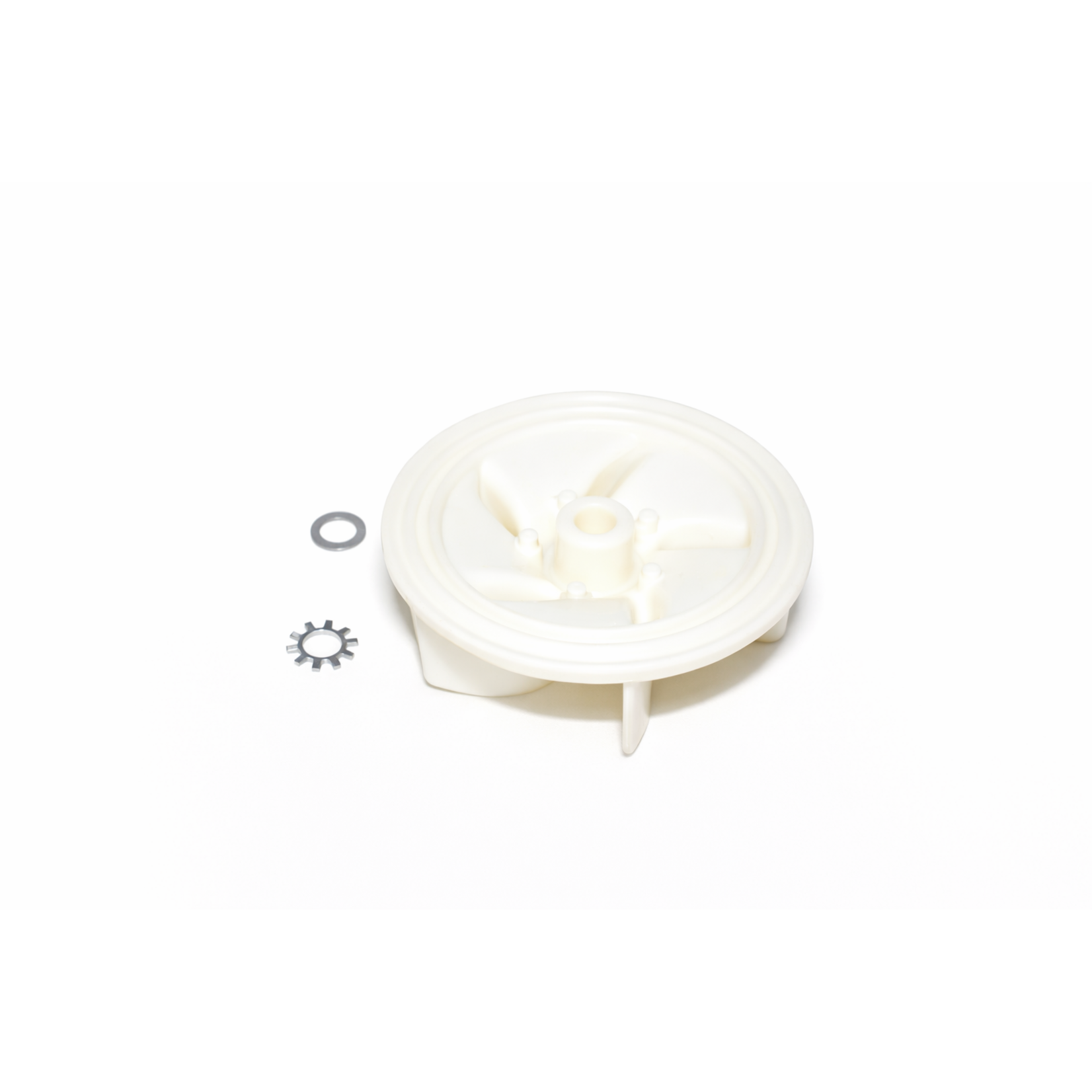

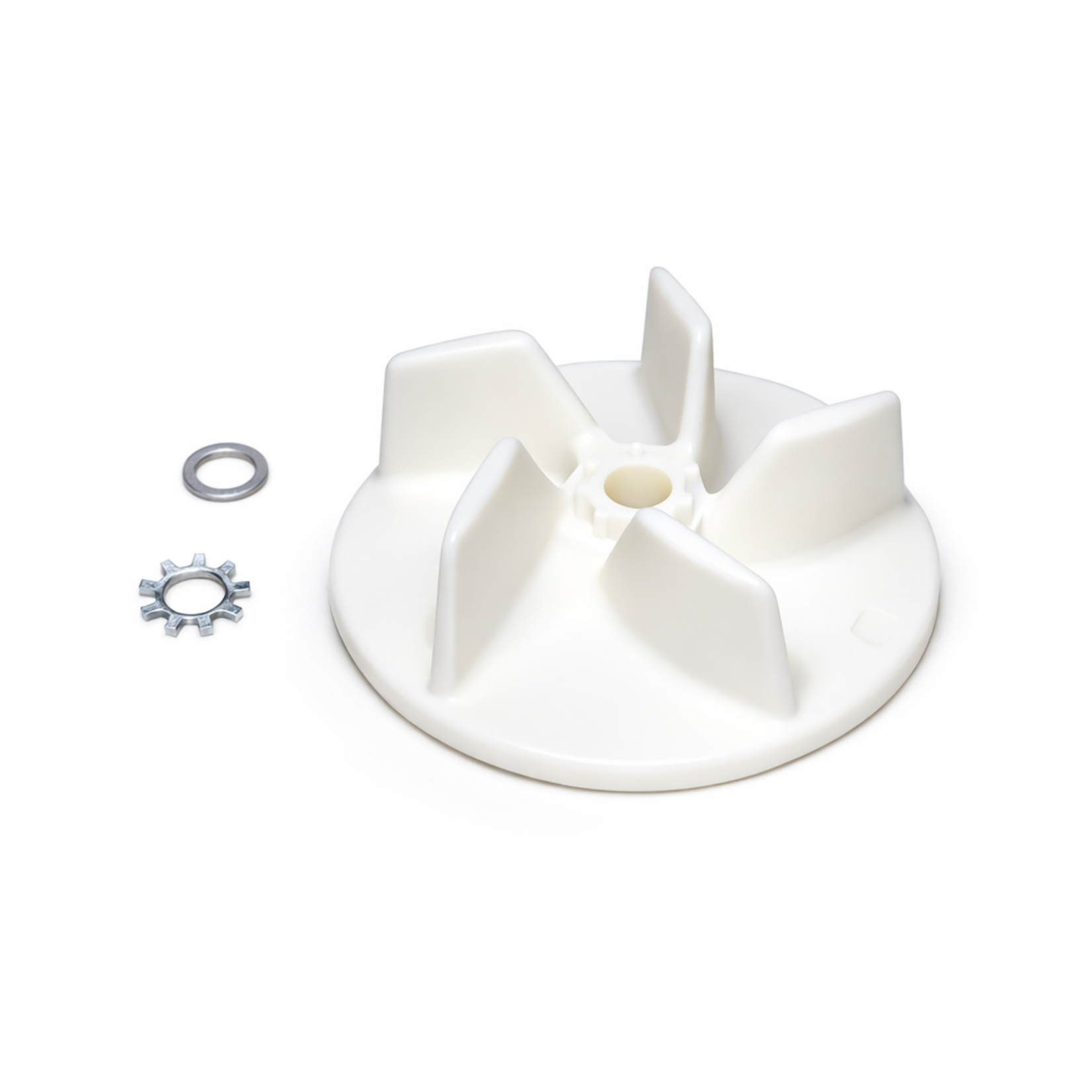

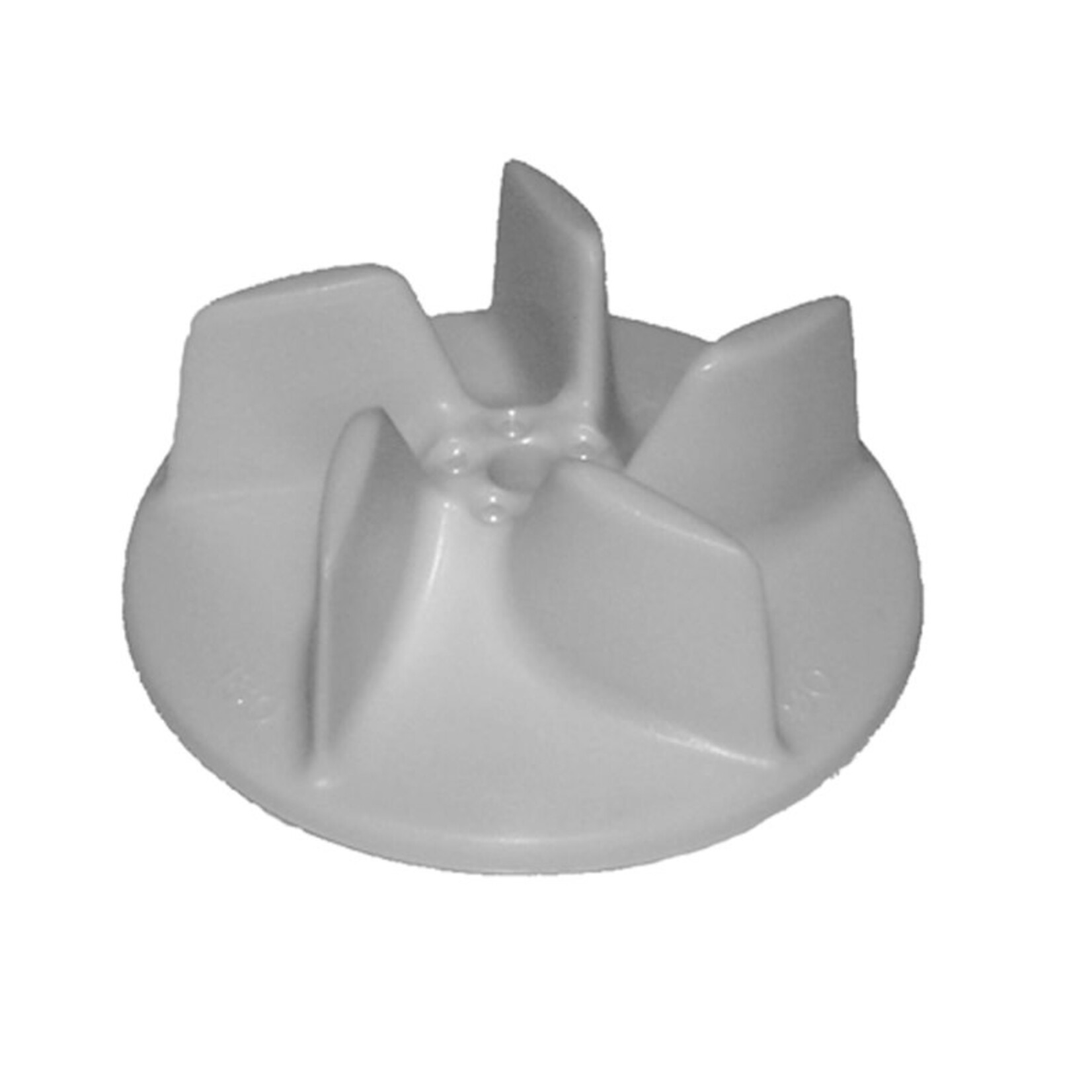

The fan is molded from durable off-white plastic and features five precision-shaped blades optimized for the high-RPM operating speeds of Oreck's compact upright motors. Its lightweight construction — weighing under one ounce — contributes to Oreck's signature light-body design, while still generating the airflow needed for effective cleaning. Each kit includes the fan itself along with two essential washers: a flat washer and a lock washer. These components ensure proper positioning and secure retention on the motor shaft during operation. Note that some installation kits from select retailers also include the retaining nut, which uses a left-hand (reverse) thread — a critical detail that trips up many first-time installers. Turn the nut clockwise to loosen, counter-clockwise to tighten.

This fan is compatible with well over 100 Oreck XL upright models spanning decades of production, including the 2000, 2100, 2200, 2300, 2400, 2500, 2600, 2700, 2800, 3600, 3800, 3900, 3910, 4070–4490, 988, 9100–9400, 100C, XL2250–XL9000 series, and many more. It also cross-references with part numbers 097530001, 097530001N, 58-8617-01, 75013-01, OR-2800, and 0975300, making it easy to confirm the correct part regardless of where your original number came from. Note that this fan does not fit the XL2175, XL4000 series, XL4300 series, or XL21 series, which use different fan and housing assemblies. Installation requires removing the brush roller cover and retaining nut — a straightforward process that most mechanically comfortable owners can complete in under 30 minutes.

At Swiss Boy Vacuum, we stock genuine OEM and OEM-specification replacement parts so that repairs are done right the first time. A failed fan doesn't mean it's time for a new vacuum — a $15 part and a short repair session can restore full suction and extend the life of your Oreck XL by years. Our team has been servicing and repairing vacuums across the Wasatch Front since 1963, and we carry the parts and expertise to back every sale. If you're unsure whether this fan fits your specific model, call us at 801-298-3656 and we'll confirm compatibility before you order.

Why Choose This Product?

• Directly Restores Lost Suction — A cracked or worn fan is one of the most common causes of suction loss in Oreck XL vacuums. Replacing it brings full airflow back immediately.
• Fits 100+ Oreck XL Models — One of the most universally compatible Oreck parts available, covering virtually the entire XL and XL2 upright lineup across decades of production.
• Complete Kit Included — Comes with both a lock washer and a flat washer for a proper, secure installation right out of the box.
• Seven Cross-Reference Part Numbers — Whether you know it as 09-75300-01, OR-2800, 58-8617-01, or 097530001N, this is the correct fan for your Oreck XL.
• OEM-Specification Quality — Molded to the same standards as the original factory component for a guaranteed fit and balanced, vibration-free operation.
• Highly Cost-Effective Repair — A fraction of the cost of a new vacuum or a professional service call, and one of the most straightforward DIY repairs on any Oreck upright.
• Critical for Motor Health — In Oreck's direct-suction design, the fan also cools the motor. A damaged fan allows the motor to overheat — replacing it protects your investment in the entire machine.
• Backed by Swiss Boy's Expertise — Sold by a vacuum specialist with over 60 years of hands-on repair experience. Call us if you have any questions about installation.

Specifications

Compatibility List

Oreck XL Numeric Series: 2000HH, 2000RH, 2000RS, 2100HH, 2100RH, 2100RS, 2200RS, 2300RS, 2400RS, 2500RH, 2600HH, 2700HH, 2800H2B, 2800H2W, 3600HH, 3600RH, 3610HH, 3800H2B, 3900H2B, 3910H2B, 4070H2L, 4080H2B, 4080H2R, 4080H2Y, 4090H2B, 4090H2G, 4090H2P, 4090H2T, 4120H2B, 4120H2P, 4120H2R, 4490HH, 100C, 888, 888G, 5300, 8300, 9100C, 9200, 9300, 9300G, 9400, 988, 988G

Oreck XL2 / XL Series: XL2250RS, XL2260RS, XL2310RS, XL2310RSF, XL2310RD, XL2330HS, XL2330RS, XL2330RD, XL2740RD, XL9000W

Additional Confirmed Compatible Models: XL2005HH, XL2005RH, XL2006HH, XL2006RH, XL2007HH, XL2070RH, XL2090RHM, XL2090RSM, XL2205RH, XL2206RH, XL2320RH, XL2325RH, XL2450RH, XL2455RH, XL2500HH, XL2540RH, XL2545RH, XL2605HH, XL2605HHT, XL2606HH, XL2610HH, XL2635RH, XL2700RH, XL2700RHY, XL2705HH, XL2800H2US, XL2800HAY, XL3505HH, XL3605HH, XL3640HH, XL9000D, XL9100E, XL9100HG, XL9300C, XL9300E, XL9300ES, XL9300H, XL9300MM, XL9300MS, XL9300S, XL9800

⚠️ Does NOT fit: Oreck XL2175, XL4000 series, XL4300 series, or XL21 series. Contact Swiss Boy Vacuum at 801-298-3656 to confirm compatibility with your specific model if not listed above.

Use Case

The Oreck 09-75300-01 fan is the go-to repair part for any Oreck XL upright owner experiencing sudden suction loss, unusual motor vibration, or a rattling sound coming from inside the vacuum body — all classic signs of a cracked or chipped impeller blade. It is equally essential as a preventive maintenance replacement for vacuums used in high-debris environments like workshops, pet-heavy households, or commercial settings, where hard debris contact is more frequent. Rather than retiring a perfectly good machine, swapping this single inexpensive component restores the vacuum to full performance in under 30 minutes.
