Product Description

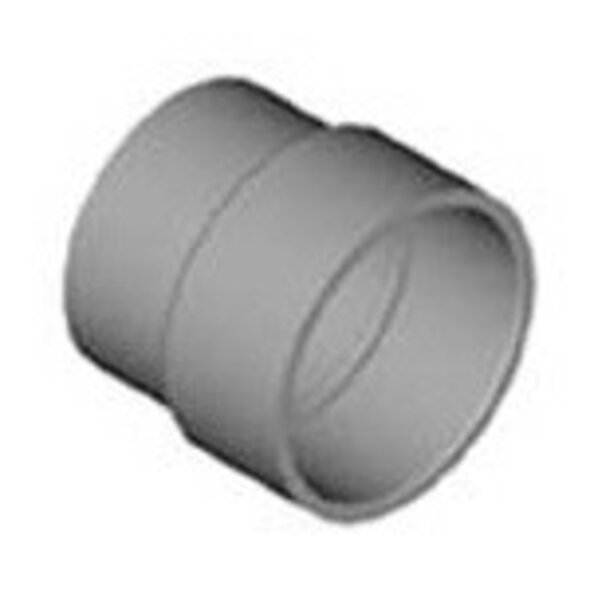

The Central Vacuum Inlet Valve Extension by Plastiflex provides a solution for installations where wall inlet valves are positioned at a distance from mounting brackets due to increased wall thickness. This extension adds 3/4 inch of spacing and can be cut to shorter sizes as needed. Designed as a male-to-female fitting measuring 1-5/8 inches in length with a white finish.

Constructed as a white male-to-female coupling specifically designed with low internal surface friction for air handling use in central vacuum applications. The tapered design features a large end with 1-5/8 inch inner diameter and 1-7/8 inch outer diameter, while the small end has 1-1/2 inch inner and 1-5/8 inch outer diameter. The extension can be cut to size if less than 3/4 inch spacing is required.

Compatible with major central vacuum brands including AirMaster, Modern Day, SilentMaster, Flo-Master, Beam, Nutone, Electrolux, Vacuflo, Kenmore and Eureka systems. Works with Nutone, Beam, VacuFlow, and Electrolux central vacuum systems. Most inlets are universal with two screws four inches apart and 1-1/2 inch diameter hole, and vacuum inlets are usually interchangeable between brands.

Swiss Boy Vacuum has been Utah's trusted central vacuum specialist since 1963, serving the Wasatch Front from our Bountiful location. As an authorized dealer for BEAM, Riccar, Lindhaus, Vacuflo, Intervac, and Plastiflex, we provide expert installation, service, and genuine parts. Contact our experienced team at 801-298-3656 for professional guidance on your central vacuum needs.

Why Choose This Product?

• Adds precisely 3/4 inch spacing for thick wall installations
• Tapered design fits 1-5/8" to 1-1/2" diameter connections
• Low internal surface friction design optimized for airflow efficiency
• Can be cut to custom shorter lengths as needed
• Multiple extensions can be joined for walls over 3/4" thick
• 1-5/8 inch total length with male-to-female connection
• Ensures proper seal between mounting bracket and wall plate
• White PVC construction matches standard inlet components

Specifications

• Brand: Plastiflex
• Part Number: 6061070
• SKU: 6061070
• Material: PVC
• Length: 1-5/8 inches
• Extension Added: 3/4 inch
• Large End Diameter: 1-5/8" inner, 1-7/8" outer
• Small End Diameter: 1-1/2" inner, 1-5/8" outer
• Color: White
• Connection Type: Male-to-female fitting
• Included: Single extension piece
• Design: Low friction interior surface

Compatibility

• BEAM Models: All standard BEAM central vacuum inlet systems
• Nutone Models: All standard Nutone central vacuum inlet systems
• Electrolux Models: All standard Electrolux central vacuum inlet systems
• VacuFlow/Vacuflo Models: All standard VacuFlow and Vacuflo inlet systems
• Other Brands: AirMaster, Modern Day, SilentMaster, Flo-Master, Kenmore, Eureka
• Universal Fit: Standard 1-1/2" diameter inlet holes with 4" screw spacing

Use Case

This extension is essential for installers and homeowners dealing with thick walls that prevent proper connection between mounting brackets and wall plates. Common in installations with thicker drywall, insulation, or construction materials that exceed standard wall thickness. Note that longer mounting screws will be required when using this extension to accommodate the additional spacing.
