Product Description

The Riccar Handle Wire Harness With Switchboard is an essential electrical component that connects the handle controls to the main body of your Riccar upright vacuum. This OEM part number B333-2200B ensures proper communication between your handle switches and the vacuum's internal systems. This harness is specifically designed as a "Handle to Body Harness" that maintains electrical connectivity for carpet/floor switches and other handle-mounted controls. The harness features multi-wire construction with proper gauge conductors and molded connectors for secure electrical connection.

This genuine Riccar part is manufactured to OEM specifications with 16-gauge copper wiring and weather-resistant connectors. The harness includes strain relief boots and proper terminals to ensure long-lasting performance. Installation requires basic electrical knowledge and proper disassembly of the vacuum handle assembly.

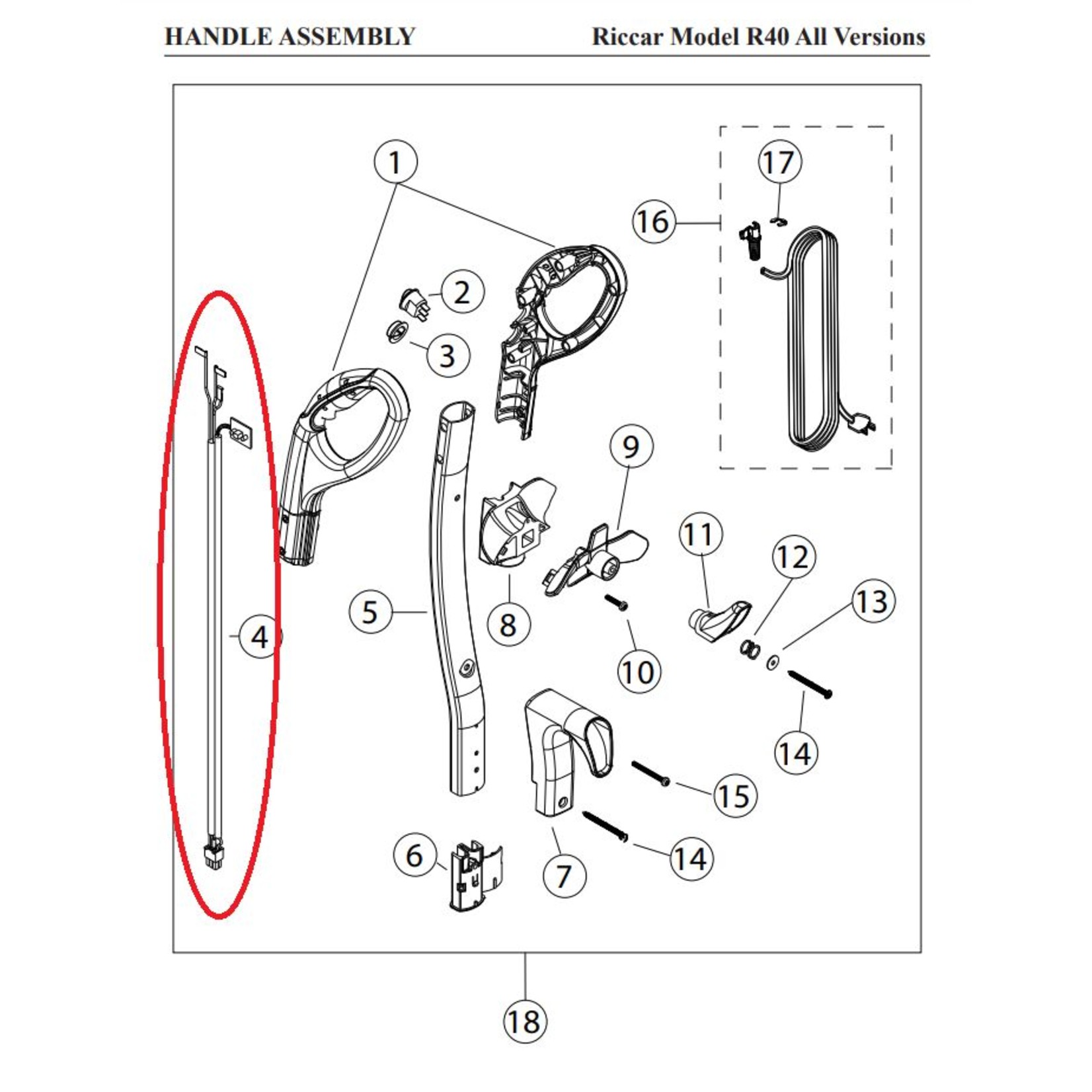

Compatibility includes Riccar Radiance, Radiance Premium (RAD, RADP), and Brilliance upright vacuum models. This harness is compatible with Riccar R40 series models including R40, R40.2, R40.LE, R40P, R40P.2, R40P.4, and R40P.6 variants. The part is also listed in official Riccar parts documentation for Brilliance models including BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, and BRLP versions.

Swiss Boy Vacuum is an authorized Riccar dealer serving Bountiful, Utah and the Wasatch Front since 1963. Our expert technicians provide professional vacuum repair services and genuine OEM parts for all Riccar models. Contact us at 801-298-3656 for technical support and installation assistance.

Why Choose This Product?

• Genuine OEM Riccar part B333-2200B with exact fit specifications
• 16-gauge copper wiring rated for 120V AC electrical systems
• Molded connector ends with 6-pin configuration
• Strain relief boots protect against wire fatigue at connection points
• 36-inch harness length accommodates full handle extension
• Weather-resistant connectors prevent corrosion and moisture damage
• Direct replacement for failed handle-to-body electrical connections
• Restores carpet/floor switch functionality and power indicator lights

Specifications

• Brand: Riccar
• Part Number: B333-2200B
• SKU: 17754167
• Component Type: Wire Harness Assembly
• Wire Gauge: 16 AWG copper conductors
• Harness Length: 36 inches
• Connector Type: 6-pin molded terminals
• Voltage Rating: 120V AC
• Connection: Handle to Body
• Function: Electrical connectivity for handle controls
• Installation: Requires vacuum disassembly
• OEM Manufacturer: Tacony Corporation

Compatibility

• Riccar R40 Series: R40, R40.2, R40.LE, R40P, R40P.2, R40P.4, R40P.6
• Riccar Radiance: RAD, RADP (Radiance Premium)
• Riccar Brilliance: BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP

Use Case

This wire harness is essential for Riccar vacuum owners experiencing handle control malfunctions, including non-responsive carpet/floor switches or intermittent electrical connections. When handle controls stop working properly, this harness restores full functionality by providing electrical communication between the handle switches and the vacuum's main control system through its 6-pin connector configuration.
